PKH2 Series
Description
PHK2 Series Step Light Monolux.
Replace halogen with lower energy consumption. High CRI LEDs reproduce a nature white comfortable color tone. Environmental friendly: No mercury, no breakage and pollution risk. 304 stainless steel cover and body. Transparent, tempered glass diffuser. Plastic recessed box included. Waterproof and durable silicone rubber gasket.
Technical Drawing

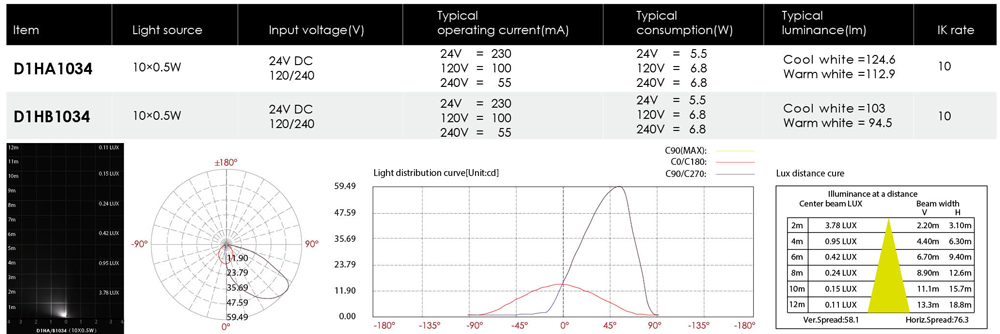

Light Distribution
Accessories
System overview
Product overview
Hide filter
| Product | Code | Color | Power | Luminous flux | Input voltage | Beam angle | Color temperator | Control by |
|
PKH290522 | Silver | 5 W | 113 lm | 24VDC | 2000K | Dali | |
|
|
PKH290422 | Silver | 5 W | 113 lm | 24VDC | 2000K | PWM | |
|
|
PKH290322 | Silver | 5 W | 113 lm | 24VDC | 2000K | Triac | |
|
|
PKH290222 | Silver | 5 W | 113 lm | 24VDC | 2000K | 0-10V | |
|
|
PKH290122 | Silver | 5 W | 113 lm | 24VDC | 2000K | On/off | |
|
|
PKH270522 | Silver | 5 W | 125 lm | 24VDC | 6000K | Dali | |
|
|
PKH270422 | Silver | 5 W | 125 lm | 24VDC | 6000K | PWM | |
|
|
PKH270322 | Silver | 5 W | 125 lm | 24VDC | 6000K | Triac | |
|
|
PKH270222 | Silver | 5 W | 125 lm | 24VDC | 6000K | 0-10V | |
|
|
PKH270122 | Silver | 5 W | 125 lm | 24VDC | 6000K | On/off | |
|
|
PKH210522 | Silver | 5 W | 113 lm | 24VDC | 3000K | Dali | |
|
|
PKH210422 | Silver | 5 W | 113 lm | 24VDC | 3000K | PWM | |
|
|
PKH210322 | Silver | 5 W | 113 lm | 24VDC | 3000K | Triac | |
|
|
PKH210222 | Silver | 5 W | 113 lm | 24VDC | 3000K | 0-10V | |
|
|
PKH210122 | Silver | 5 W | 113 lm | 24VDC | 3000K | On/off |
